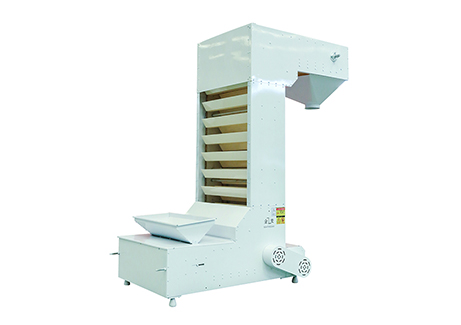

In many industrial scenarios involving material lifting, many materials such as granular fertilizers, plastic particles, grains, fragile ores, etc. have very high requirements for integrity. Traditional lifting machines are prone to breakage due to material collision, compression, and friction during the lifting process, which not only causes material loss but also affects subsequent processing quality and product quality. The non crushing elevator is a specialized lifting equipment designed to address this pain point. Its core advantage lies in the ability to achieve vertical or inclined material transportation while minimizing material crushing to the greatest extent possible. The realization of this advantage relies entirely on scientific core design principles and comprehensive anti crushing mechanisms, rather than simple structural improvements.

The core design logic of a non crushing elevator is to avoid crushing risks from three key links: material contact, conveying trajectory, and power transmission, and to build a comprehensive anti crushing guarantee throughout the entire process. In the design of material contact components, it abandons the high hardness and rough surface metal hoppers and conveying parts in traditional elevators, and instead uses specialized materials with good flexibility and smooth surfaces. These materials not only reduce the friction coefficient between materials and components, avoiding material damage caused by friction and scratching, but also form a certain buffer when materials fall into the hopper, reducing the impact force at the moment of contact between materials and the hopper. At the same time, the shape design of the hopper has been precisely optimized, using large volume, shallow bucket or curved structure, allowing materials to fall smoothly and be evenly distributed, avoiding material accumulation and compression in the hopper, and reducing the possibility of breakage from the contact source.

The smooth design of the conveying trajectory is the key core of anti crushing for non crushing elevators. The hopper of a traditional elevator undergoes processes such as accelerated start-up, rapid turning, and intense unloading during operation. These drastic changes in motion can cause the material to collide and roll violently inside the hopper, leading to crushing. The crusher free elevator optimizes the transmission system and track design to ensure that the hopper always maintains a uniform and stable operating state, reducing speed fluctuations to the greatest extent possible during both the ascending and turning unloading stages. In the unloading process, it abandons the traditional centrifugal unloading method and adopts gravity or gentle guiding unloading. By designing the position and angle of the unloading port reasonably, the material slides smoothly to the discharge port under its own gravity, avoiding severe impact between the material and the discharge port under centrifugal force. This smooth conveying trajectory keeps the material in a relatively stable state throughout the entire lifting process, fundamentally reducing the breakage caused by motion impact.

In addition, the non crushing elevator further enhances its anti crushing effect through precise material flow control and anti blocking design. The equipment is equipped with a dedicated feeding adjustment device, which can accurately control the feeding amount according to the operating capacity of the elevator, avoiding excessive squeezing of materials in the hopper or crushing caused by blockage and accumulation in the conveying channel due to excessive feeding. At the same time, the interior of the conveying channel adopts a smooth inner lining design to reduce the frictional resistance between the material and the channel wall during the conveying process, avoiding damage caused by material jamming and friction. Some high-end equipment will also be equipped with intelligent monitoring systems to monitor the real-time status of material transportation. Once abnormal squeezing or blockage signs are detected, the operating parameters will be adjusted in a timely manner to ensure the smooth and safe transportation process.

The anti crushing effect of a non crushing elevator is the result of the collaborative efforts of material selection, structural design, and operational control. It starts from the entire process of material transportation, accurately avoiding various risk points caused by traditional elevators leading to material breakage, and achieving smooth and complete material transportation. In the current era of increasing requirements for material integrity, this type of lifting equipment with anti crushing as the core design concept provides reliable support for many industries to reduce material loss and improve product quality, and has also become an important direction for upgrading material conveying equipment.
